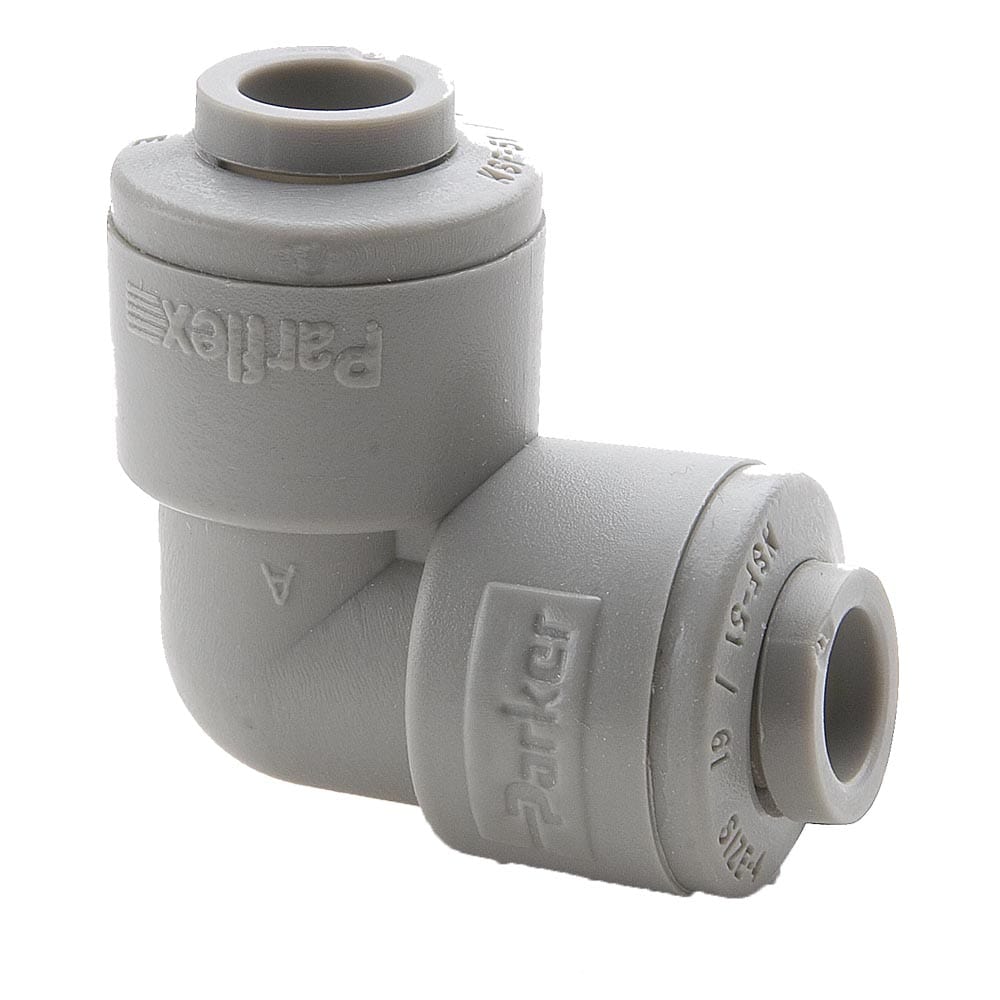

A6EU6-MG 3/8 X 3/8 Elbow Union Parker TrueSeal Fitting

Name: A6EU6-MG 3/8 X 3/8 Elbow Union Parker TrueSeal Fitting
Brand: Motion And Flow Control Products Inc.
SKU: PAR-60010
Price: 9.99 USD
Availability: InStock

$9⁹⁹ USD

Shipping calculated at checkout.

If any item is out of stock we can likely order it for you. Check in with the parts department at the link below.

Contact Parts Dept.

Delivery and Shipping

Spare Parts orders over $100 ship automatically qualify for free ground shipping!

SKU: PAR-60010

Description

The Parker Truseal A6EU6-MG 3/8 Elbow Union is designed to be easily attached in the field without any tools. Made from FDA-compliant materials, these lightweight fittings are perfect for connecting tubing with no hassle.

Shape:	Elbow 90°
Connection 2 Type:	Push-to-Connect
Connection 2 Size:	3/8"
Connection 1 Type:	Push-to-Connect
Configuration:	Tube to Tube
Connection 1 Size:	3/8"
Color:	Gray
Minimum Operating Temperature:	-20 °F, -29 °C
Maximum Operating Temperature:	180 °F, 82.2 °C
Maximum Operating Pressure:	300 psi, 20 bar
Seal Material:	EPDM (O-Ring)
Specifications Met:	FDA, NSF/ANSI 51, NSF/ANSI/CAN 61
Body Material:	Acetal
